Add GF Hook Button

PfJs.addGfHookButton(target, label, hook_catch_str, data, css_class, click_func)

This function enables the addition of a custom button to your application's user interface, which triggers a GlobiFlow Webhook when clicked.

Arguments

• target (optional): The target variable from the On Render event, which typically represents the jQuery DOM wrapper of the current screen. By default, using 'target' places the button alongside form action buttons like 'Save' and 'Cancel'. If you wish to place the button in a different location, pass the ID of the desired <div> instead of using 'target'. (Note: The term 'target' should be used exactly as is; it is not a placeholder to be modified.)
• label: The text label displayed on the button.
• hook_catch_str: The string ID of the webhook, found after /catch/ in the webhook URL. This ID is crucial for linking the button to the correct webhook action.

• data (optional): An array of data that can be passed to the webhook. This data can include any additional parameters or information needed for the webhook to execute properly.

• css_class (optional): An additional CSS class that can be added to the button for styling purposes.
• click_func (optional): A JavaScript function that is called after the flow is successfully triggered. This function can handle post-execution logic or UI updates.

Usage

To use PfJs.addGfHookButton, provide the necessary parameters as described. This allows you to customize the button's functionality and appearance to fit your application's needs.

Example: Setting Up a Webhook Trigger Button on a Detail Screen

This example outlines the process of setting up a button in a detail screen that triggers a GlobiFlow webhook on the item displayed. The item ID is retrieved during the "Before Render" event, and a button is dynamically added to the screen, configured to trigger a webhook when clicked.

• Step 1: Retrieve and Store the Item ID (Before-Render)
• First, in the "Before Render" event, capture the item ID from the current item and store it in a variable. This ID will be used later to specify which item the workflow should act upon.

• my_variables.item = current_item["item_id"];

• This line of code retrieves the item_id from the current_item object, which represents the data of the item currently displayed on the detail screen, and stores it in my_variables.item.
• Step 2: Define the Callback Function (On-Render)
• Define a function that will be called once the workflow has successfully completed. This function can alert the user to the success of the operation.

• function flowTriggered() {
      alert('Workflow completed successfully!');
  }

• Step 3: Add the Button to the Screen (On-Render)
• With the item ID stored and the callback function defined, you can now add the button to the screen using PfJs.addGfFlowButton. This button will be configured to trigger the specified GlobiFlow workflow.

• label = "Trigger Flow";

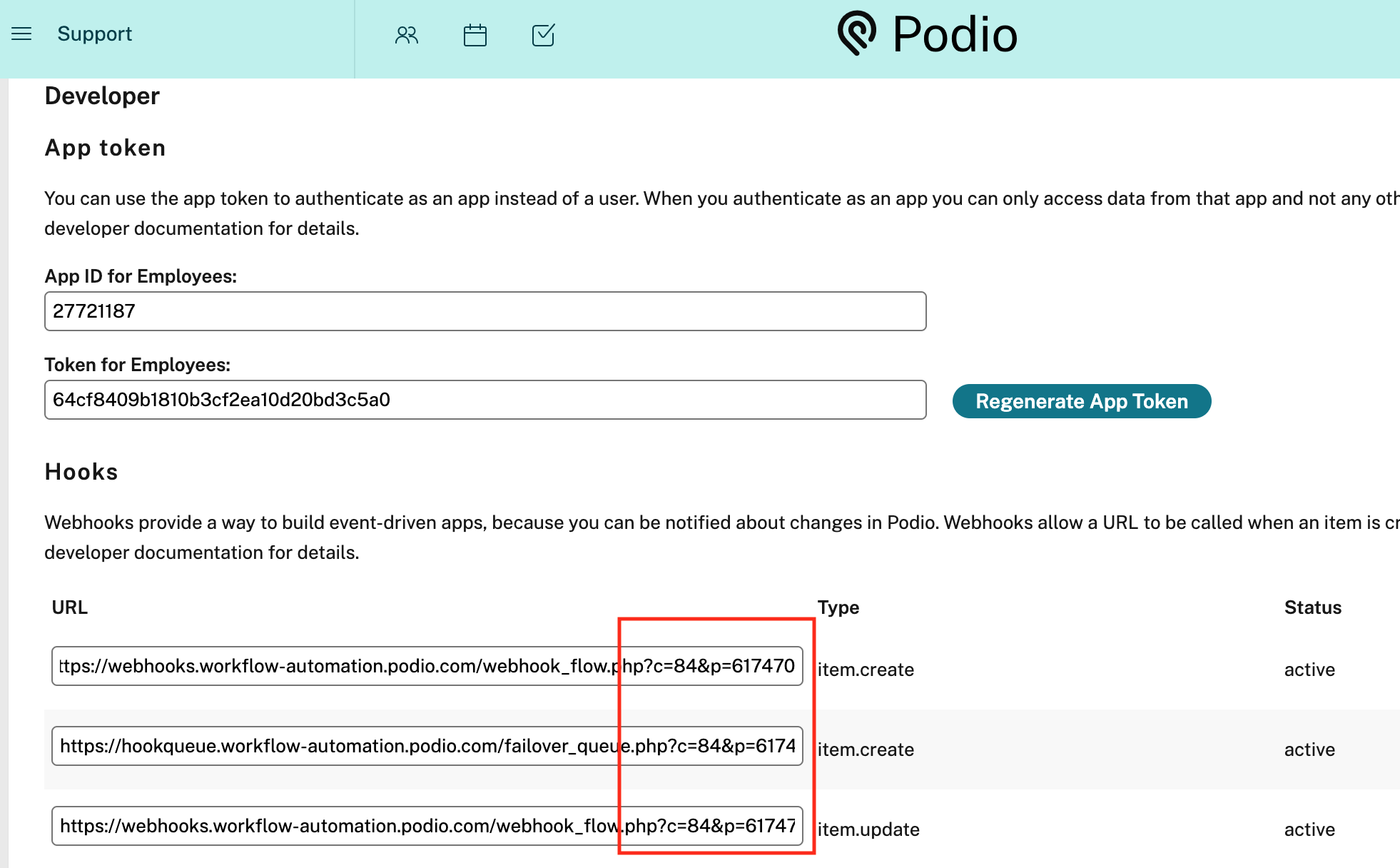

  c = 84;
  p = 617470;

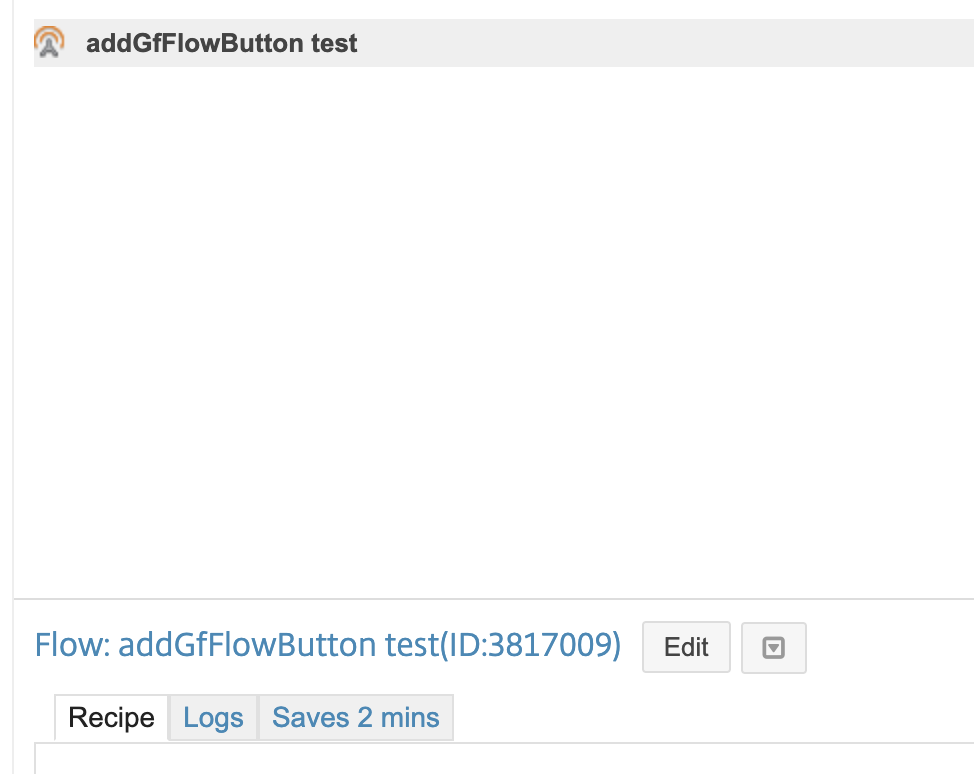

  flow_id = 3817009;
  css_class = "";
  PfJs.addGfFlowButton(target, label, c, p, flow_id, my_variables.item, css_class, flowTriggered);
